Model NO.
FD12-18S3V3B2C5
Delivery:
EXW,FOB,CIF
Minimum order quantity:
50 pieces
Supply Ability:
5000 pieces / Day
Country of Origin:
Guangzhou
Stock Time:
3-21 Days
Quantity:

High quality 5KVdc isolation 8-12W 9-36v to 3.3v step down DC DC Converter

Why Choose Us


We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.



Product Description


Product Typical Features

Wide Input Voltage Range( 4:1),Output power 12W

Transfer Efficiency up to 90%

Stand-by Power Consumption as low as 0.05W

Output super-fast start up

Continuous Short Circuit protection, Self-recovery

Input under voltage, output over voltage, short circuit, over current protection

Switching Frequency 350KHz

Isolation Voltage: 5000VDC

Operating temperature:-40°C~+85°C

Good EMI performance

International standard pin-out



Application Field

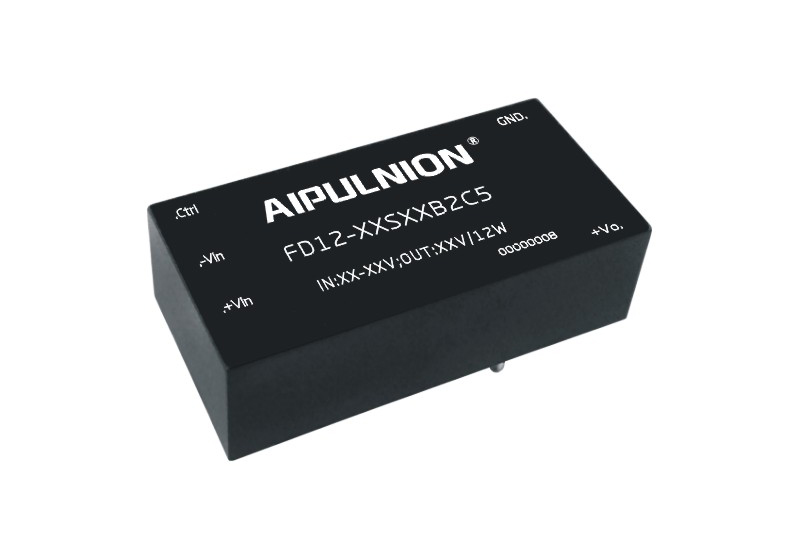

FD12-XXSXXB2C5 is a newly designed DIP 2X1 packed,12W output power, ultra wide input range 4:1,low stand-by power consumption,isolated regulated output DC-DC converter,could be widely used for industrial control, instrument, communication, power electricity, internet and etc.

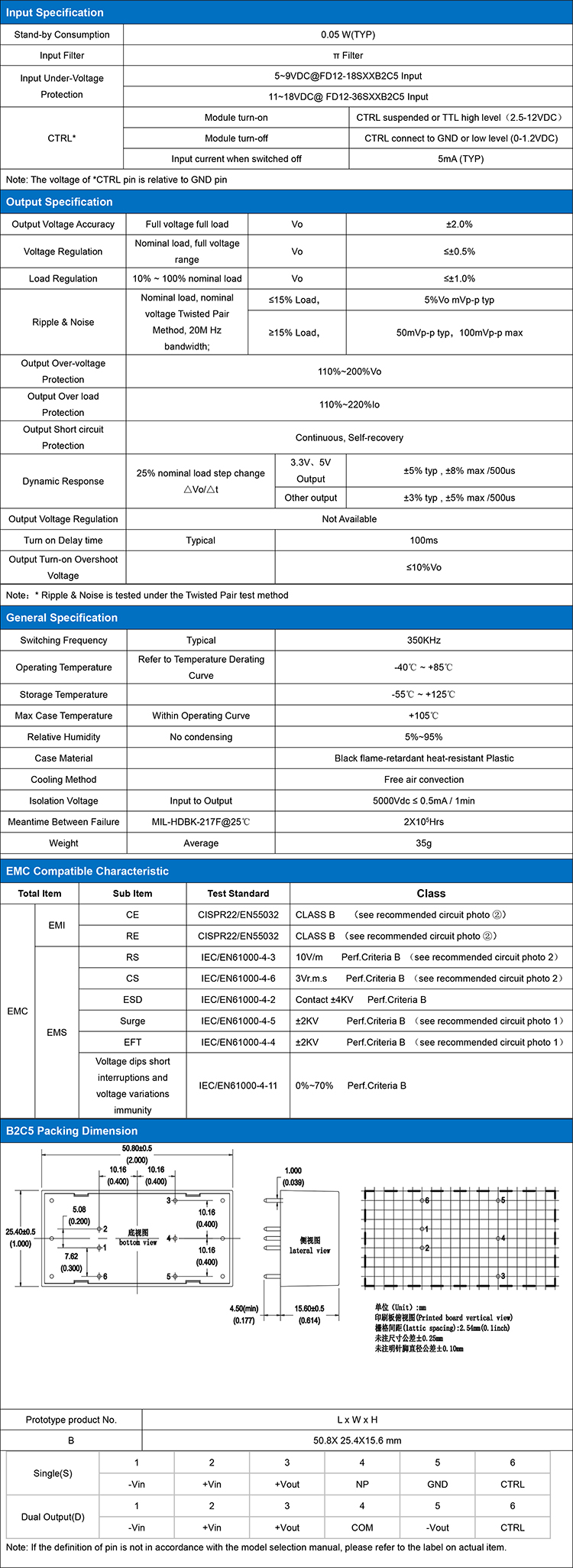

Part No.Input Voltage Range(VDC)

Output Voltage/

Current(Vo/Io)

Input Current

(mA)

(Nominal Voltage)

Max

Capacitive Load

Ripple &

Noise

mVp-p

Efficiency of

output

full load (%)

NominalRange

Voltage

(VDC)

Current

(mA)

MAX./Min.

Full Load

typ.

No Load typ.uFTyp.Max.MinTyp
*FD12-18S3V3B2C5249-363.32400/0379308000501008487
FD12-18S05B2C52452400/0565525000508689
*FD12-18S09B2C52491333/0556302000508790
*FD12-18S12B2C524121000/055621000508790
*FD12-18S15B2C52415800/05562800508790
*FD12-18S24B2C52424500/05562500508790
*FD12-36S3V3B2C54818-753.32400/0190308000501008386
FD12-36S05B2C54852400/0284305000508588
*FD12-36S09B2C54891333/0278302000508790
*FD12-36S12B2C548121000/027821000508790
*FD12-36S15B2C54815800/02782800508790
*FD12-36S24B2C54824500/02782500508790

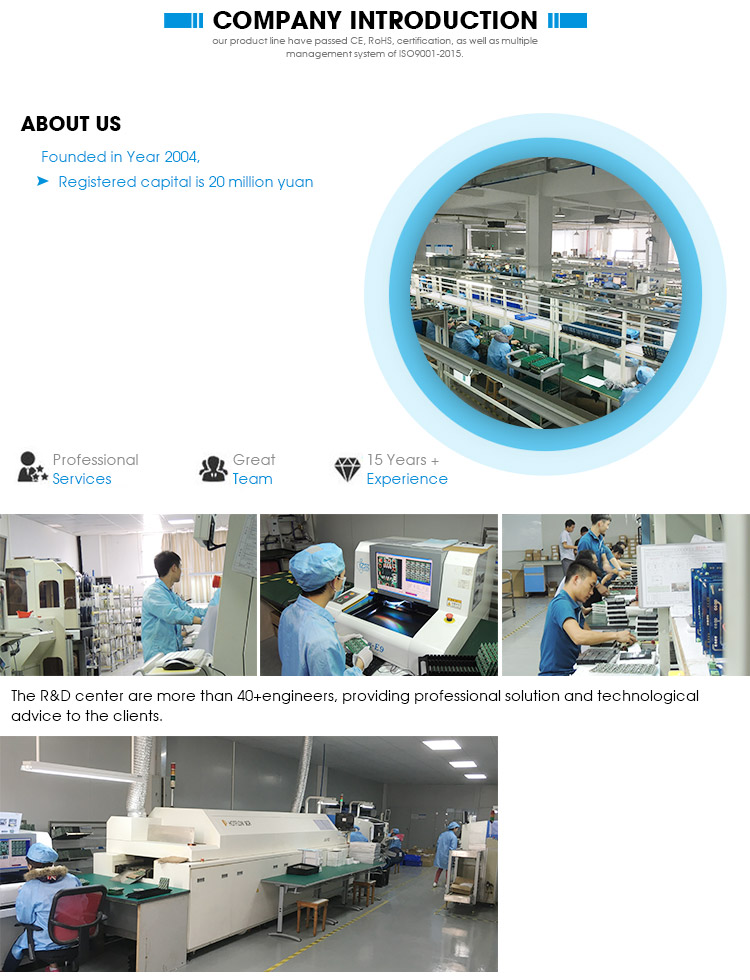

Company Profile




Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.

Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.

Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.

Certifications


Packing & Shipping


Q1: Are you a factory or trading company?

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?

A3:Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?

A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: What is the price of shipping?

A5: Depending upon the port of delivery, prices varies.
