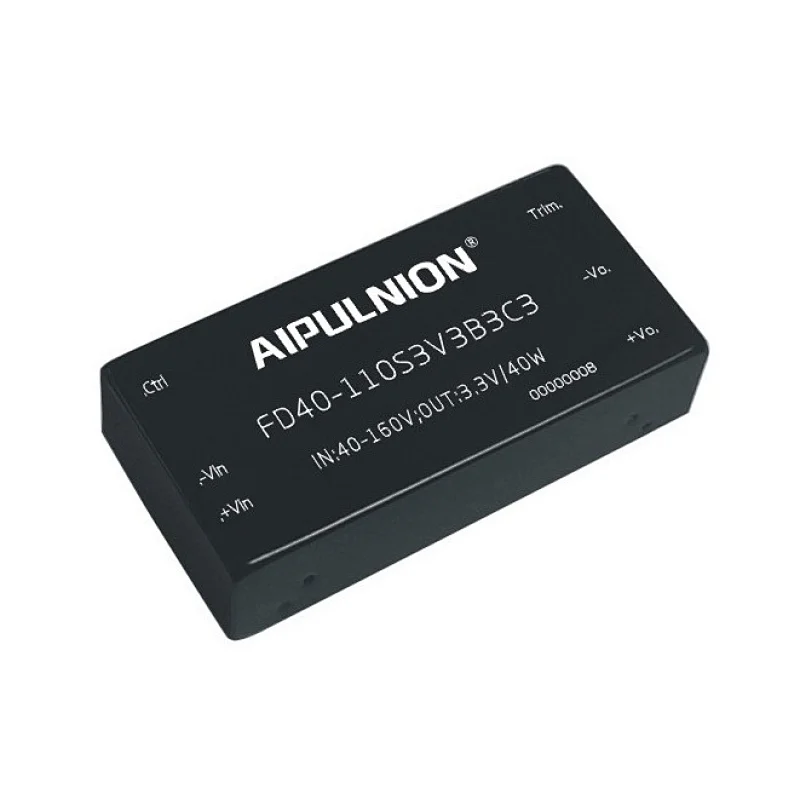

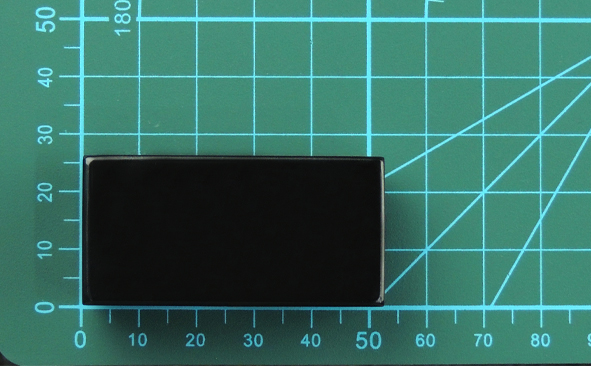

Isolated railway 40w dc dc converter 110V(40-160V) output 3.3v dc switching power supply 2*1 inch

Why Choose Us


We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.

Product Description

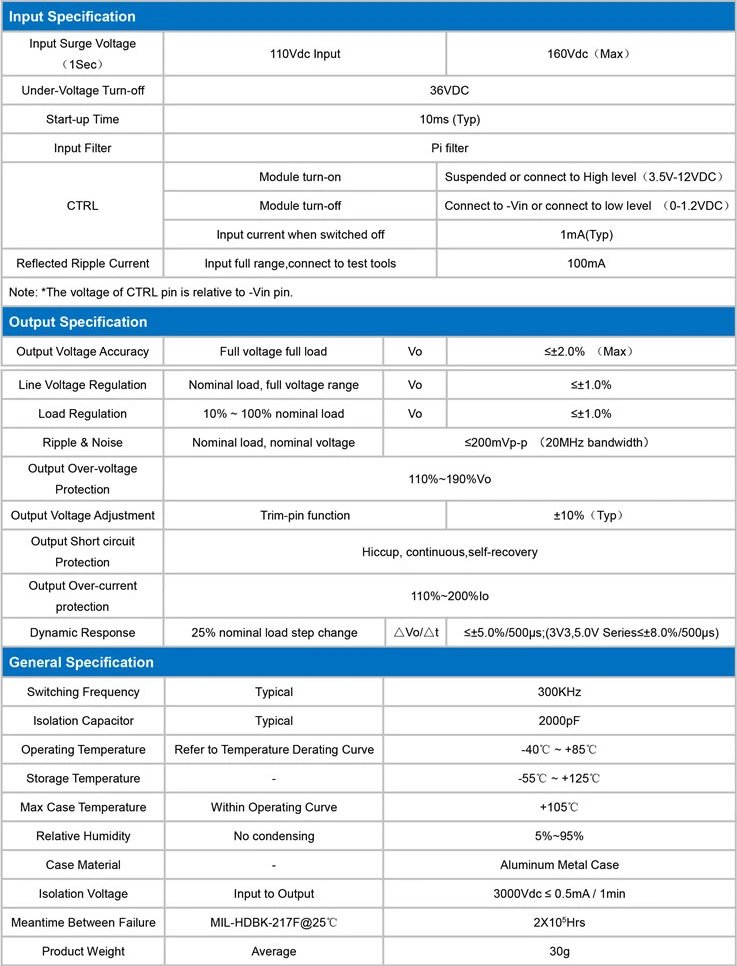

Product Typical Features

Wide input voltage range(4:1)Output Power 50W

Ultrathin Package:13mm

Transfer Efficiency up to 90%

Stand-by Power Consumption as low as 3W

Output super-fast start up as low as 10ms

Continuous Short Circuit protection, Self-recovery

Input under voltage, output over voltage, short circuit, over current protection

Switching Frequency 300KHz

Isolation Voltage 3000VDC/1500VAC

Operating Temperature: -40°C~+85°C

Good EMI performance

International standard pin-out

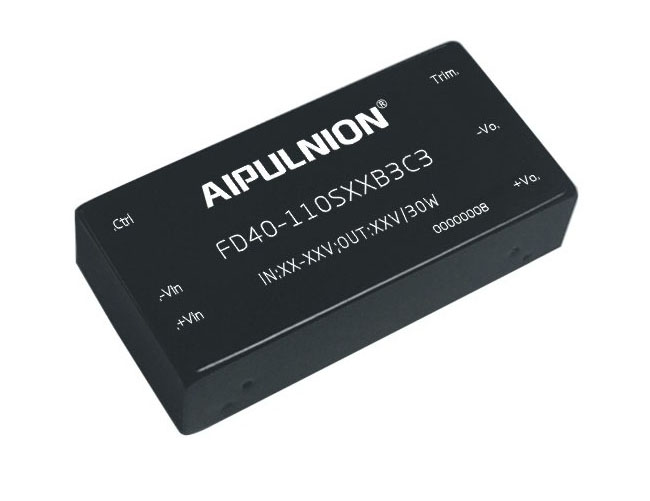

FD40-XXSXXB3(C) is a new designed 40W output DC DC Converter with wide input voltage range(4:1), super-fast start up, isolated®ulated output, DIP/chassis mounting/DIN-Rail mounting, single output, isolation(3000VDC/1500VAC) function. It features the protection function of under-voltage, output over current, output short circuit, and output over voltage. It is widely used in the 72V,96V,110V of industrial control, electrical power, communication, engine, industrial robot, etc.

FD40-110SXXB3C3 -1.jpg

Part No

Input Voltage



Output Voltage/



Input Current (mA)

(Nominal Voltage)




Ripple & Noise










Full load


No Load


u FmVp-p (mV)MinTyp
