Model NO.
WA75-220S24L1
Delivery:
EXW,FOB,CIF
Minimum order quantity:
5 pieces
Supply Ability:
500 pieces / Day
Country of Origin:
Guangzhou
Stock Time:
3-21 Days
Quantity:

PCB Mounting 110V/120V/220V/230V/240V AC Input to 24V AC DC Switching Power Supplies 75W

Why Choose Us


We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.

Product Description


Typical Features

Wide Input Voltage Range

Typical Efficiency (Typ. 85%)

Switching Frequency: 65KHz typ

Over Current / Short circuit /Over temperature protection, self-recovery

Input-Output Isolated

PCB Mounting

Metal Case L1

Application Field

WA75-WA100/NA150-220XXXL1 Series-a high efficient compact converter offered by Aipu,

It features universal input voltage range, AC and DC dual-use, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation.

The series widely used for industry, office and civil application.

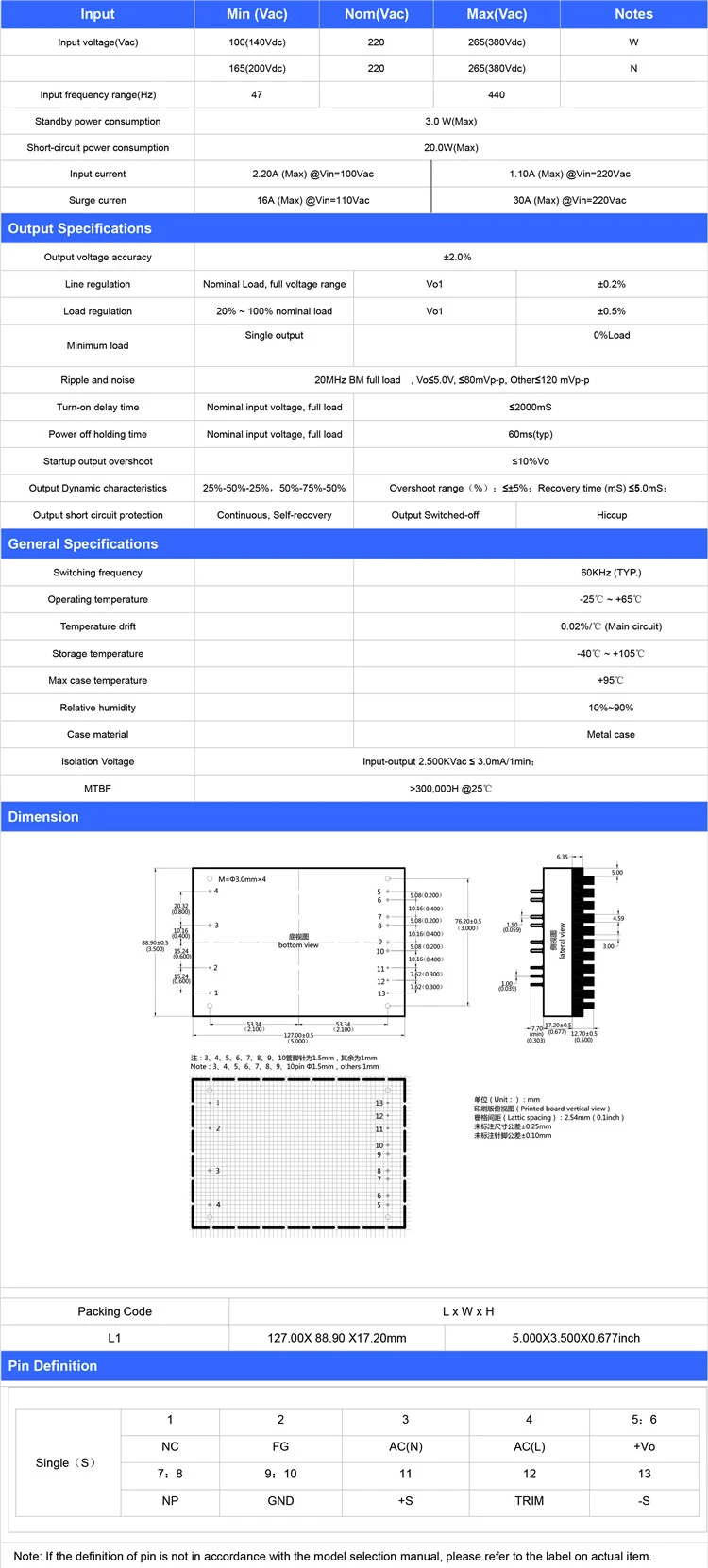

The application circuit in the datasheet is strongly recommended for harsh EMC environment.

Part no.

Input voltage

range

Output voltage/

current

Max.

Capacitive

Load

Ripple&Noise

20MHz

Efficiency@

Full Load,

Nominal

Input Voltage

(Typical)

Vo1(V)Io1(m A)

Vo2

(V)

Io2

(m A)

u FmVp-p%
*WA75-220S05L1

100Vac-265Vac/

140Vdc-380Vdc

515000--200012082
WA75-220S12L1126250100012085
WA75-220S24L124312547012086
WA100-220S12L1128333100012085
WA100-220S24L124416647012086
NA150-220S12L1

165Vac-265Vac/

200Vdc-380Vdc

1212500100012084
NA150-220S24L124625047012085


Hot Sales

Company Profile


Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.

Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.

Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.

Certifications


Packing & Shipping


Q1: Are you a factory or trading company?

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?

A3:Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?

A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: What is the price of shipping?

A5: Depending upon the port of delivery, prices varies.
