ACDC Converter
ACDC Converter

ACDC Converter

Model NO.
FA15-220S05F2D4
Delivery:
EXW,FOB,CIF
Minimum order quantity:
50 pieces
Supply Ability:
5000 pieces / Day
Country of Origin:
Guangzhou
Stock Time:
3-21 Days
Quantity:

15w 220vac to 5vdc single output isolated ac to dc converter switch power adapter

Why Choose Us


We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.

Product Description

Typical Features:

  • 15W AC DC Converter 220V/230V to 5V 3A
  • Universal input voltage range 85~265Vac
  • Switching Frequency: 65KHz Typ.
  • Cooling by free air convection
  • 100% burn-in test
  • Low cost / High reliability
  • Input and Output highly isolated 4000Vac
  • PCB Mounting
  • Ultra small in size
  • Plastic case, meet UL94V-0
  • 3 years warranty
  • Safety Standard:CE,RoHS
  • Protections: Over current, short circuit, over temperature



Typical Features

Wide input voltage range:85-265VAC/120-380VDC

No-load power consumption≤≤0.35W

Transfer efficiency(typ. 84%)

Switching frequency: 65KHz

Protection: Short Circuit, Over Current, Over Voltage, Over Temperature

Isolation voltage: 4000Vac

Meet IEC60950/UL60950/EN60950 Test Standard

Plastic case, conform to UL94V-0 Class

PCB mounting



Application Field

FA15-220SXXF2D4 Series----- a compact size, high efficient power converter offered by Aipu.

It features universal input voltage, DC and AC dual-use, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation, with good EMC performance. EMC and Safety standard meet international EN55032,IEC/EN61000. It widely used in power, industrial, instrument, smart home applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.

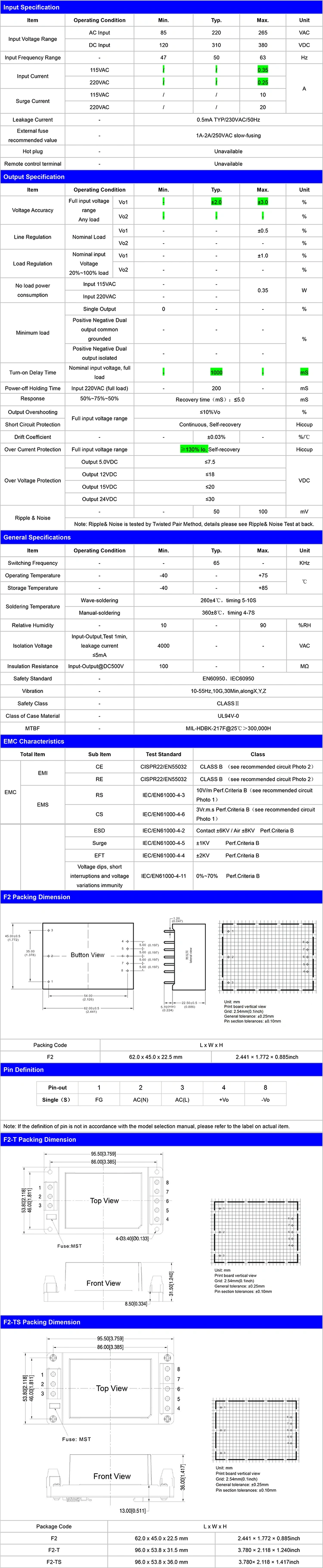

Typical Product List

Part No.Output Specification

Max.

Capacitive

Load

Ripple&Noise

20MHz

(Max)

Efficiency@

Full Load 220Vac

(Typical)

Power(W)

Voltage 1

Vo1(V)

Current 1

Io1

(m A)

Voltage 2

Vo2(V)

Current 2

Io2

(m A)

u FmVp-p%
FA15-220S05F2D41553000--10008074
FA15-220S09F2D41591667--10008082
FA15-220S12F2D415121250--8008084
*FA15-220S15F2D415151000--7008084
FA15-220S24F2D41524625--50010086




Hot Sales
Company Profile




Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.

Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.

Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.

Certifications


Packing & Shipping


Q1: Are you a factory or trading company?

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?

A3:Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?

A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: What is the price of shipping?

A5: Depending upon the port of delivery, prices varies.
