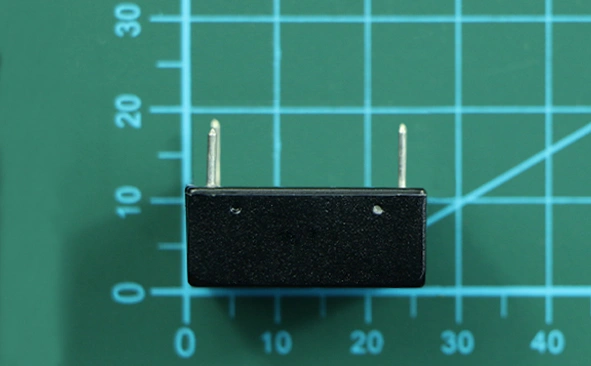

6W DC DC converter Wide Input Voltage(4:1)9-36V to 5V/-5V power supply module Dual Output
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Product Typical Features
Wide input voltage range( 4:1),Output Power 6W
Transfer Efficiency up to 84%
Short Circuit protection, Self-recovery
Protection: input under-voltage, over-voltage, short circuit, over current
Switching Frequency 250KHz
Isolation Voltage: 1500VDC
Operating Temperature: -40°C~+85°C
Good EMI performance
International standard pin-out
Application Field
FD6-XXDXXA3 is a newly designed DIP 1X1 packed,6W output power, ultra wide input range 4:1,low stand-by power consumption,isolated regulated dual but common ground output DC-DC converter,could be widely used for industrial control, instrument, communication, power electricity, internet of things field.
Typical Products List
| Part No | Input Voltage Range (VDC) | Output Voltage/ Current(Vo/Io) | Input Current (mA) Nominal Voltage | Max. Capacitive Load | Ripple & Noise (mVp-p) | Efficiency (%) @output full load, input nominal voltage | |||||
| Nominal | Range | Voltage (VDC) | Current (mA) MAX./Min. | Full load typ. | No Load typ. | uF | Typ. | Max. | Min. | Typ. | |
| *FD6-18D3V3A3 | 18 | 9-36 | ±3.3 | ±500/0 | 241 | 25 | 220 | 30 | 80 | 74 | 76 |
| FD6-18D05A3 | ±5 | ±500/0 | 439 | 25 | 220 | 74 | 76 | ||||
| *FD6-18D09A3 | ±9 | ±333/0 | 422 | 25 | 100 | 77 | 79 | ||||
| FD6-18D12A3 | ±12 | ±208/0 | 422 | 25 | 100 | 77 | 79 | ||||
| FD6-18D15A3 | ±15 | ±167/0 | 417 | 25 | 47 | 78 | 80 | ||||
| FD6-18D24A3 | ±24 | ±104/0 | 412 | 25 | 22 | 79 | 81 | ||||
| *FD6-36D3V3A3 | 36 | 18-75 | ±3.3 | ±500/0 | 118 | 10 | 220 | 30 | 80 | 76 | 78 |
| FD6-36D05A3 | ±5 | ±500/0 | 203 | 10 | 220 | 80 | 82 | ||||
| *FD6-36D09A3 | ±9 | ±333/0 | 203 | 10 | 100 | 80 | 82 | ||||
| FD6-36D12A3 | ±12 | ±208/0 | 198 | 10 | 100 | 82 | 84 | ||||
| FD6-36D15A3 | ±15 | ±167/0 | 198 | 13 | 47 | 82 | 84 | ||||
| FD6-36D24A3 | ±24 | ±104/0 | 198 | 13 | 22 | 82 | 84 | ||||
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
