12W dc-dc buck converter step down module, 9-36VDC to 3.3V power supply 3.3/5/9/12/15/24V output, 1500V isolation
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Product Typical Features
Wide input voltage range ( 4:1),Output Power 12W
Transfer Efficiency up to 87%
Stand-by Power Consumption as low as 0.05W
Output super-fast start up
Continuous Short Circuit protection, Self-recovery
Input under voltage, output over voltage, short circuit, over current protection
Switching Frequency 250KHz
Isolation Voltage 1500VDC
Operating Temperature:-40°C~+85°C
Good EMI performance
International standard pin-out
Application Field

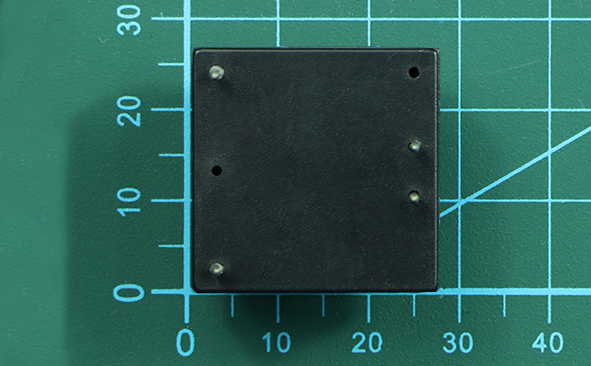

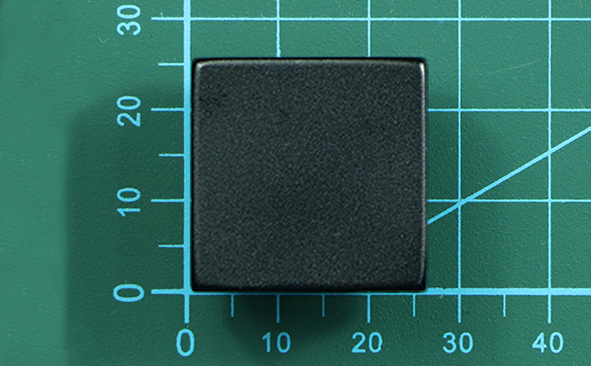

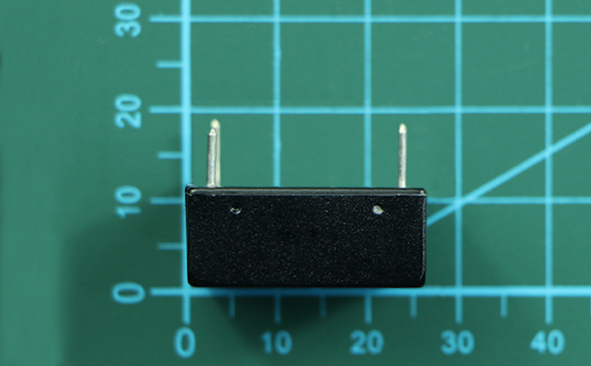

FD12-XXSXXA3(C) is a newly designed DIP 1X1 packed, 12W output power, ultra wide input range 4:1,low stand-by power consumption,isolated regulated output DC-DC converter,could be widely used for industrial control, instrument, communication, power electricity, internet of things field.
Product List
| Part No | Input Voltage Range (VDC) | Output | Input Current (mA) Nominal Voltage | Max. Capacitive Load | Ripple & Noise (mVp-p) | Efficiency (%) @output fullload, input nominal voltage | |||||
| Nominal | Range | Voltage (VDC) | Current(mA) MAX./Min. | Full load (typ.) | No Load (typ.) | uF | Typ. | Max. | Min. | Typ. | |
| FD12-18S3V3A3(C) | 24 | 9-36 | 3.3 | 2400/0 | 423 | 1 | 5000 | 50 | 100 | 75 | 78 |
| FD12-18S05A3(C) | 5 | 2000/0 | 514 | 2000 | 78 | 81 | |||||
| FD12-18S09A3(C) | 9 | 1333/0 | 595 | 1000 | 81 | 84 | |||||
| FD12-18S12A3(C) | 12 | 1000/0 | 595 | 1000 | 81 | 84 | |||||
| FD12-18S15A3(C) | 15 | 800/0 | 588 | 800 | 82 | 85 | |||||
| FD12-18S24A3(C) | 24 | 500/0 | 581 | 600 | 83 | 86 | |||||
| FD12-36S3V3A3(C) | 48 | 18-75 | 3.3 | 2400/0 | 211 | 5000 | 75 | 78 | |||
| FD12-36S05A3(C) | 5 | 2000/0 | 257 | 2000 | 78 | 81 | |||||
| FD12-36S09A3(C) | 9 | 1333/0 | 297 | 1000 | 81 | 84 | |||||
| FD12-36S12A3(C) | 12 | 1000/0 | 297 | 1000 | 81 | 84 | |||||
| FD12-36S15A3(C) | 15 | 800/0 | 294 | 800 | 82 | 85 | |||||
| FD12-36S24A3(C) | 24 | 500/0 | 290 | 600 | 83 | 86 | |||||
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
