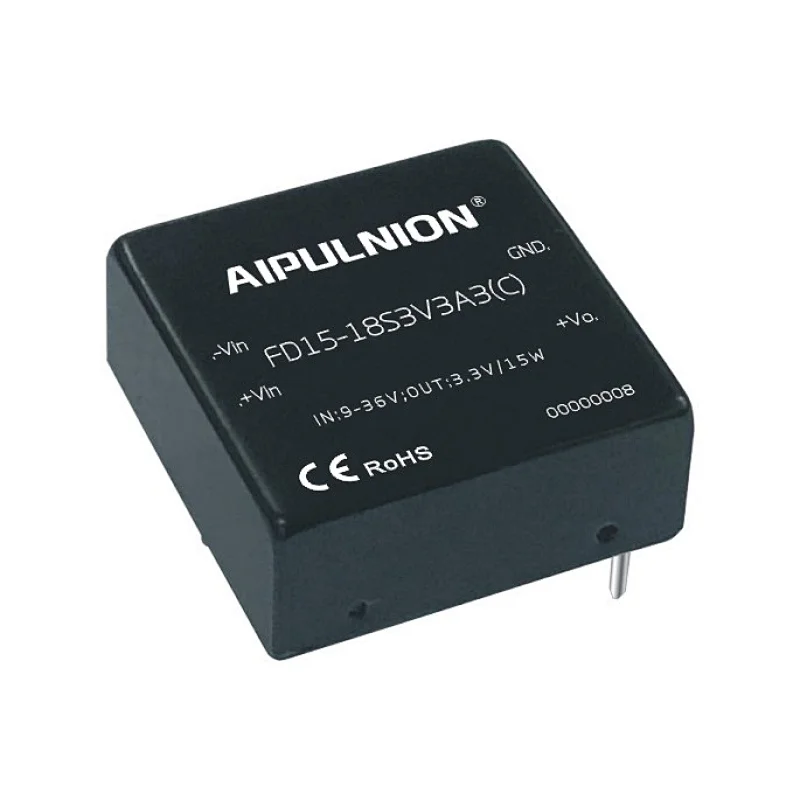

15W wide input voltage range(4:1)9-36V to 3.3V Single output Power Supply DC-DC Converter Power Module
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Product Typical Features
Wide input voltage range ( 4:1),Output Power 15W
Transfer Efficiency up to 90%
Stand-by Power Consumption as low as 0.020W
Output super-fast start up
Continuous Short Circuit protection, Self-recovery
Input under voltage, output over voltage, short circuit, over current protection
Switching Frequency 350KHz
Isolation Voltage 1500VDC
Operating Temperature: -40°C~+85°C
Good EMI performance
International standard pin-out
Application Field
FD15-XXSXXA3(C) is a newly designed DIP 1X1 packed,15W output power, ultra wide input range 4:1,low stand-by power consumption,isolated regulated output DC-DC converter,could be widely used for industrial control, instrument, communication, power electricity, internet of things field.

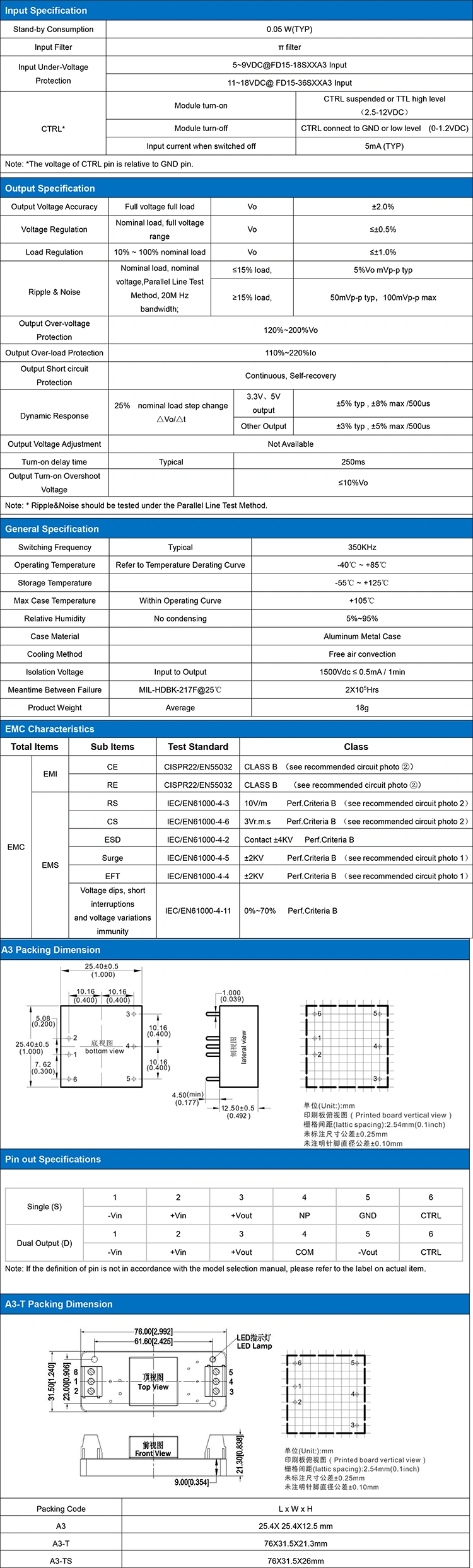

Typical Product List
| Part No | Input Voltage Range (VDC) | Output Voltage/ Current(Vo/Io) | Input Current (mA) (Nominal Voltage) | Max. Capacitive Load | Ripple & Noise mVp-p | Efficiency(%) @output full load, input nominal voltage | |||||
| Nominal | Range | Voltage (VDC) | Current (mA) MAX./Min. | Full load typ. | No Load typ. | uF | Typ. | Max. | Min | Typ | |
| FD15-18S3V3A3(C) | 24 | 9-36 | 3.3 | 4000/0 | 626 | 30 | 10000 | 50 | 100 | 85 | 88 |
| FD15-18S05A3(C) | 5 | 3000/0 | 694 | 30 | 5000 | 87 | 90 | ||||
| FD15-18S09A3(C) | 9 | 1667/0 | 694 | 30 | 3000 | 87 | 90 | ||||
| FD15-18S12A3(C) | 12 | 1250/0 | 694 | 5 | 1000 | 87 | 90 | ||||
| FD15-18S15A3(C) | 15 | 1000/0 | 694 | 5 | 800 | 87 | 90 | ||||
| FD15-18S24A3(C) | 24 | 625/0 | 694 | 5 | 500 | 87 | 90 | ||||
| FD15-36S3V3A3(C) | 48 | 18-75 | 3.3 | 4000/0 | 313 | 30 | 10000 | 50 | 100 | 85 | 88 |
| FD15-36S05A3(C) | 5 | 3000/0 | 347 | 30 | 5000 | 87 | 90 | ||||
| FD15-36S09A3(C) | 9 | 1667/0 | 347 | 30 | 3000 | 87 | 90 | ||||
| FD15-36S12A3(C) | 12 | 1250/0 | 347 | 5 | 1000 | 87 | 90 | ||||
| FD15-36S15A3(C) | 15 | 1000/0 | 347 | 5 | 800 | 87 | 90 | ||||
| FD15-36S24A3(C) | 24 | 625/0 | 347 | 5 | 500 | 87 | 90 | ||||
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
