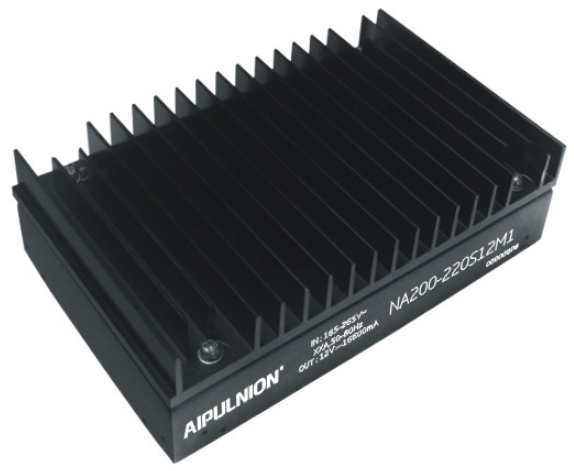

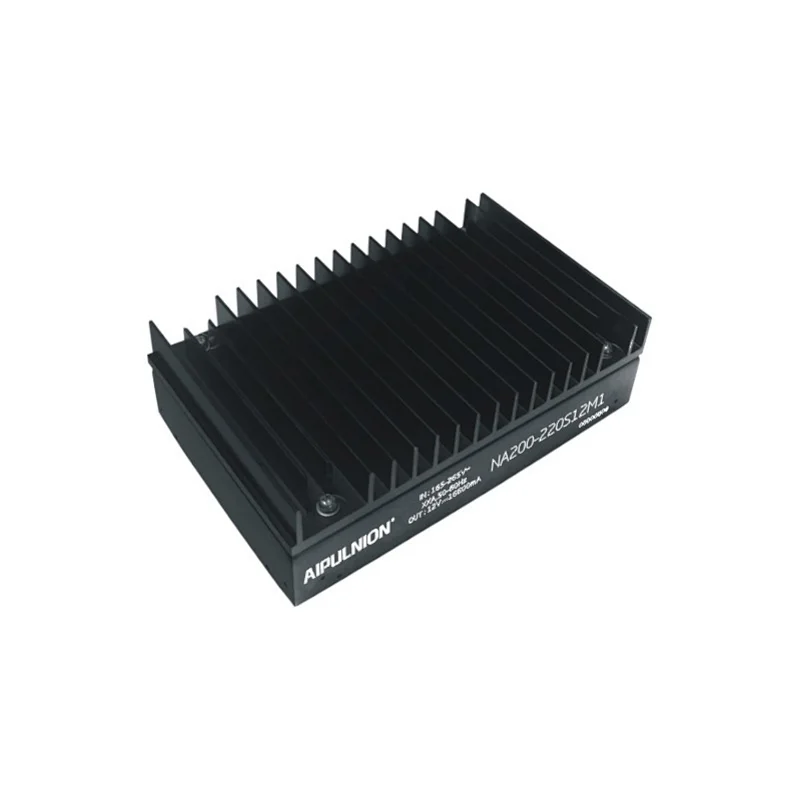

PCB Mounting 110V/120V/220V/230V/240V AC Input to 12V AC DC Switching Power Supplies 200W
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Typical Features
Wide Input Voltage Range
Typical Efficiency (Typ. 86%)
Switching Frequency: 100KHz typ
Over Current / Short circuit /Self-furbishprotection
Input-Output Isolated
PCB Mounting
Metal Case L1
InputSpecifications | Min(Vac) | Nom(Vac) | Max(Vac) | Notes | |||||
Input voltage(Vac) | 165(200Vdc) | 220 | 265(380Vdc) | N | |||||
Input frequencyrange(Hz) | 47 | 440 | |||||||
RemoteControl | Unavailable | ||||||||
OutputSpecifications | |||||||||
OutputVoltage accuracy | Vo1 | ±1.0% | |||||||
Line regulation | Nominalload,full voltagerange | Vo1 | ±0.2% | ||||||
Loadregulation | 20% ~100% nominal load | Vo1 | ±0.5% | ||||||
Ripple& Noise | 20MHz BM(fullload) | ||||||||
≤120mVp-p | |||||||||
Turn-on delaytime | TYP | 1S | |||||||
GeneralSpecifications | |||||||||
TransferEfficiency | Nominal input voltage,full load | 86%(Typ) | |||||||
Switching frequency | 100KHz(Typ.) | ||||||||
Operating temperature | Free airconvection | -25℃~+65℃ | |||||||
Storage temperature | -40℃~+105℃ | ||||||||
Maxcasetemperature | +90℃ | ||||||||
Relative humidity | 10%~90% | ||||||||
Casematerial | Metal case | ||||||||
IsolationVoltage | Input-output 2.5KV≤1.5mA/1min；Input- caseInput-FG1.5KV≤1.5mA/1min | ||||||||
MTBF | 2X105Hrs | ||||||||
TypicalProductList | |||||||
Item | Inputvoltage range | Output voltage / Current | |||||
VO1 | VO2 | VO3 | |||||
V | mA | V | mA | V | mA | ||
NA200-220S12M1 | 165~265Vac/ 200~380Vdc | 12V | 16600mA | ||||
NA200-220S15M1 | 15V | 13300mA | |||||
NA200-220S24M1 | 24V | 8330mA | |||||
NA200-220S48M1 | 48V | 4160mA | |||||
Note : Due to space limitations, above is only a part of our product list, please contact our sales team for more items. | |||||||

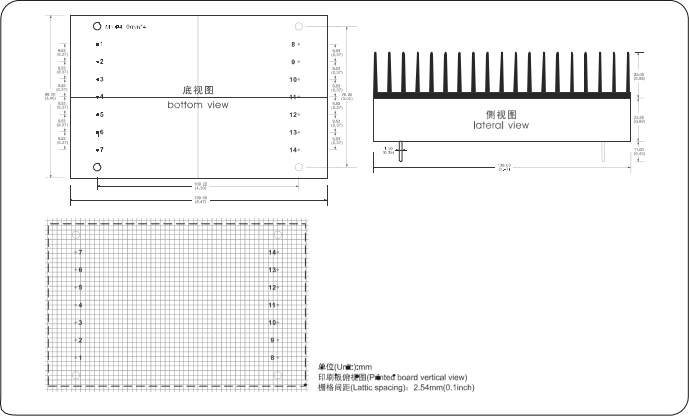

Dimension | |||||||
| |||||||
Packing Dimension | |||
Code | LxWxH | ||
M1 | 139.00 ×88.00×23.50mm | 5.47 ×3.46 ×0.93inch | |
Single (S) | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
AC(N) | NP | AC(L) | NP | NP | NP | FG | |
8 | 9 | 10 | 11 | 12 | 13 | 14 | |
+Vo | +Vo | -Vo | -Vo | +S | TRIM | -S |
