AC DC pcb mount 10W 220V 230v ac to 5v dc converter circuit, wide input voltage range 85-265vac to 12vdc
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Typical Features
Wide input voltage range: 85-305VAC/120-430VDC
No load power consumption≤0.3W
Transfer efficiency (typ. 82%)
Switching Frequency: 65KHz
Protections: Short Circuit, over current,
Isolation:4000Vac
Meet IEC60950/UL60950/EN60950 Standard
6 side shield plastic case, meet UL94 V-0
PCB mounting
Application Field

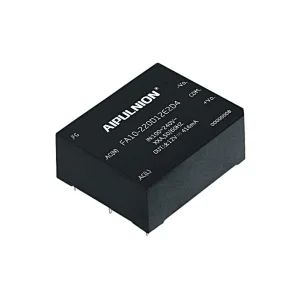

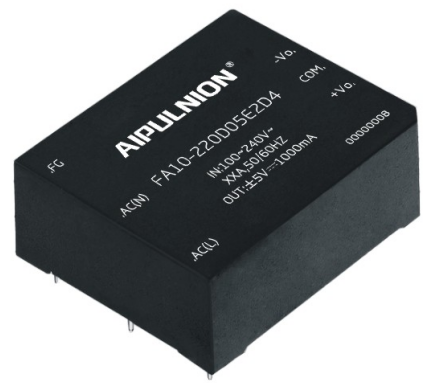

FA10-220DXXE2D4 Series----- a compact size, high efficient, meet CE standard power converter offered by Aipu.
It features universal input voltage, DC and AC dual-use, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation, good EMC performance, meet EN55032,IEC/EN61000 standard. It widely used in power, industrial, instrument and smart home applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.
Product List:
Typical Product List | |||||||||
Certificate | Model | Output Specification | Max. Capacitive Load | Ripple& Noise 20MHz （TYP.） | Efficiency@ Full Load, 220Vac（TYP.） | ||||
Power | Voltage1 | Current1 | Voltage2 | Current2 | |||||
（W） | Vo1（V） | Io1（m A） | Vo2（V） | Io2（m A） | u F | mVp-p | % | ||
/ | *FA10-220D05E2D4 | 10 | 5 | 1000 | 5 | 1000 | 1000/1000 | 80/80 | 78 |
*FA10-220D09E2D4 | 10 | 9 | 555 | 9 | 555 | 470/470 | 80/80 | 80 | |
FA10-220D12E2D4 | 10 | 12 | 416 | 12 | 416 | 470/470 | 100/100 | 82 | |
*FA10-220D15E2D4 | 10 | 15 | 333 | 15 | 333 | 330/330 | 120/120 | 82 | |
*FA10-220D24E2D4 | 10 | 24 | 208 | 24 | 208 | 220/220 | 150/150 | 82 | |
Input Specification | ||||||||
Item | Operating Condition | Min. | Typ. | Max. | Unit | |||
Input Voltage Range | AC Input | 85 | 220 | 305 | VAC | |||
DC Input | 120 | 310 | 430 | VDC | ||||
Input Frequency Range | - | 47 | 50 | 63 | Hz | |||
Input Current | 115VAC | / | / | 0.2 | A | |||
220VAC | / | / | 0.15 | |||||
Surge Current | 115VAC | / | / | 10 | ||||
220VAC | / | / | 20 | |||||
Leakage Current | - | 0.5mA TYP/230VAC/50Hz | ||||||
External fuse recommended value | - | 1A-2A/250VACslow-fusing | ||||||
Hot plug | - | Unavailable | ||||||
Remote control terminal | - | Unavailable | ||||||
Output Specification | ||||||||
Item | Operating Condition | Min. | Typ. | Max. | Unit | |||
Voltage Accuracy | Full input voltage range Any load | Vo1 | - | ±2.0 | ±3.0 | % | ||
Vo2 | - | ±2.0 | ±4.0 | % | ||||
Line Regulation | Nominal Load | Vo1 | - | - | ±0.5 | % | ||
Vo2 | - | - | ±1.5 | % | ||||
Load Regulation | Nominal input voltage 20%~100% load | Vo1 | - | - | ±2.0 | % | ||
Vo2 | - | - | ±3.0 | % | ||||
No load power consumption | Input 115VAC | - | - | 0.3 | W | |||
Input 220VAC | - | - | ||||||
Minimum load | Single Output | 0 | - | - | % | |||
Dual output common grounded | - | - | 10 | % | ||||
Dual output isolated | - | - | 10 | |||||
Turn-on Delay Time | Nominal input voltage(full load) | - | 1000 | - | mS | |||
Power-off Holding Time | Input 115VAC(full load) | - | 150 | - | mS | |||
Input 220VAC(full load) | - | 200 | - | |||||
Output Dynamic Characteristics | 25%~50%~25% 50%~75%~50% | Overshoot range（%）：≤±5.0 | % | |||||
Recovery time（mS）：≤5.0 | mS | |||||||
Output Overshooting | Full input voltage range | ≤10%Vo | % | |||||
Short Circuit Protection | Continuous, Self-recovery | Hiccup | ||||||
Drift Coefficient | - | - | ±0.03% | - | %/℃ | |||
Over Current Protection | Full input voltage range | ≥120% Io,Self-recovery | Hiccup | |||||
Ripple & Noise | - | - | 50 | 100 | mV | |||
Note: Ripple& Noise is tested by Twisted Pair Method, details please see Ripple& Noise Test at back. | ||||||||
General Specifications | ||||||||
Item | Operating Condition | Min. | Typ. | Max. | Unit | |||
Switching Frequency | - | - | 65 | - | KHz | |||
Operating Temperature | - | -40 | - | +75 | ℃ | |||
Storage Temperature | - | -40 | - | +85 | ||||
Soldering Temperature | Wave-soldering | 260±4℃，timing5-10S | ||||||
Manual-soldering | 360±8℃，timing 4-7S | |||||||
Relative Humidity | - | 10 | - | 90 | %RH | |||
Isolation Voltage | Input-Output Test 1min, leakage current≤5mA | 4000 | - | - | VAC | |||
Insulation Resistance | Input-Output@DC500V | 100 | - | - | MΩ | |||
Safety Standard | - | EN60950、IEC60950 | ||||||
Vibration | - | 10-55Hz,10G,30Min,alongX,Y,Z | ||||||
Safety Class | - | CLASSⅡ | ||||||
Class of Case Material | - | UL94V-0Class | ||||||
MTBF | - | MIL-HDBK-217F@25℃＞300,000H | ||||||
EMC Characteristics | ||||||||
Total Item | Sub Item | Test Standard | Class | |||||
EMC | EMI | CE | CISPR22/EN55032 | CLASS B | ||||
RE | CISPR22/EN55032 | CLASS B | ||||||
EMS | RS | IEC/EN61000-4-3 | 10V/m Perf.Criteria B (see recommended circuit Photo1） | |||||
CS | IEC/EN61000-4-6 | 3Vr.m.s Perf.Criteria B (see recommended circuit Photo1） | ||||||
ESD | IEC/EN61000-4-2 | Contact ±6KV / Air ±8KV Perf.Criteria B | ||||||
Surge | IEC/EN61000-4-5 | ±1KV Perf.Criteria B | ||||||
EFT | IEC/EN61000-4-4 | ±2KV Perf.Criteria B | ||||||
Voltage dips, short interruptions and voltage variations immunity | IEC/EN61000-4-11 | 0%~70% Perf.Criteria | ||||||

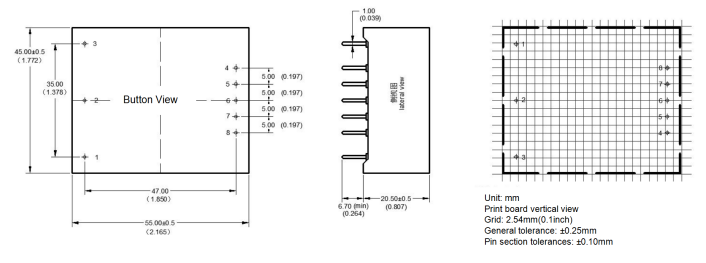

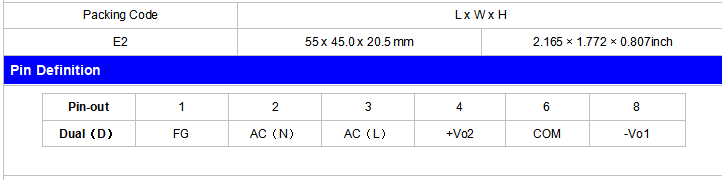

Packing dimension
