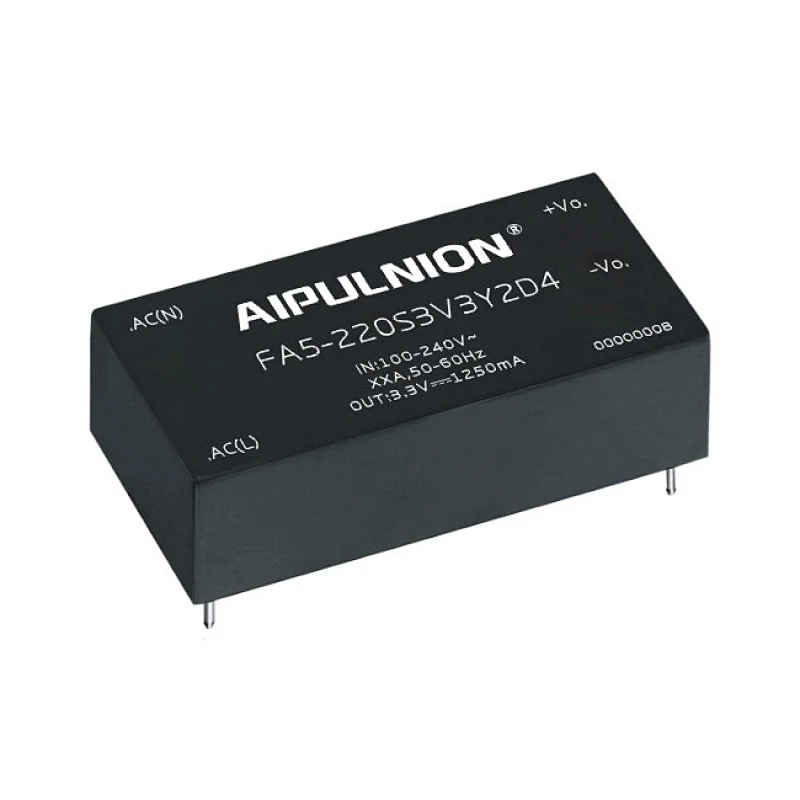

AIPU 4.1W power inverter acdc converter 110v/220v/230v ac 3.3v module 1250mA output ac dc power supply
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Typical Features
Wide Input Voltage Range: 90-265VAC/127-375VDC
Output: 3.3VDC, 5VDC, 9VDC, 12VDC, 15VDC, 24VDC, 48VDC
No load power consumption≤0.3W
Transfer Efficiency: 78% (typ.)
Switching Frequency: 65KHz
Protections: Short-circuit, Over-current, Over-temp
Isolation voltage: 4000Vac
Meet IEC60950/UL60950/EN60950 test standard
Conform to CE, RoHS
Plastic Case , meet UL94 V-0
PCB Mounting
Application Field
FA5-220SXXY2D4 Series-----a compact size, high efficient , meet CE standard power converter offered by Aipu.
It features universal input voltage range, AC and DC dual-use, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation, with good EMC performance, meet EN55032, IEC/EN61000 standard.
The series widely used for power, industry, instrument , smart home application, ect.
The application circuit in the datasheet is strongly recommended for harsh EMC environment.
| Part No | Output Specification | Max. Capacitive Load | Ripple& Noise 20MHz(MAX) | Efficiency@ Full Load, 220Vac (Typical) | ||||
Power (W) | Voltage 1 Vo1 (V) | Current 1 Io1 (m A) | Voltage 2 Vo2(V) | Current 2 Io2(m A) | u F | mVp-p | % | |
| FA5-220S3V3Y2D4 | 4.1 | 3.3 | 1250 | - | - | 2000 | 80 | 69 |
| *FA5-220S05Y2D4 | 5 | 5 | 1000 | - | - | 1000 | 80 | 71 |
| *FA5-220S09Y2D4 | 5 | 9 | 556 | - | - | 680 | 120 | 76 |
| FA5-220S12Y2D4 | 5 | 12 | 416 | - | - | 100 | 120 | 78 |
| *FA5-220S24Y2D4 | 5 | 24 | 208 | - | - | 100 | 120 | 82 |
| *FA5-220S48Y2D4 | 5 | 48 | 104 | - | - | 100 | 150 | 83 |
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
