Isolated PCB Mounted 30W Power Supply Module 110V/220V/230V/240V to 48V AC/DC Converter
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Typical Features
Wide input voltage range 85-265VAC/120-380VDC
No load power consumption≤0.3W
Transfer efficiency 87%(typical)
Switching frequency 65KHz
Protections: short circuit, over current, over voltage, over temp
Isolation Voltage 4000Vac
Meet IEC60950/UL60950/EN60950 test standard
Conform to CE, RoHS
Plastic case, meet UL94V-0
PCB Mounting
Application Field

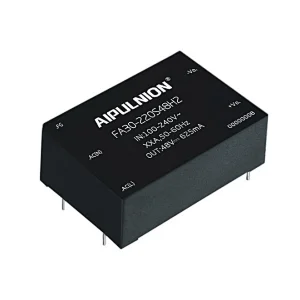

FA30-220SXXH2 Series-----a compact size, high efficient, conform to CE power converter offered by Aipu.
It features universal input voltage range, taking both DC and AC input, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation, with good EMC performance. EMC and Safety specification meet international EN55032,IEC/EN61000 standard. It is widely used in power, industrial, instrument, smart home applications. Please refer to this datasheet when module being used in a bad EMC environment.
| Part No. | Output Specification | Max. Capacitive Load | Ripple & Noise 20MHz (Max) | Efficiency @ full load 220Vac(TYP) | ||||
Power (W) | Voltage 1 Vo1(V) | Current 1 Io1(m A) | Voltage 2 Vo2(V) | Current 2 Io2(m A) | u F | mVp-p | % | |
| FA30-220S05H2 | 25 | 5 | 5000 | - | - | 10000 | 50 | 78 |
| FA30-220S09H2 | 30 | 9 | 3330 | - | 6000 | 80 | 80 | |
| FA30-220S12H2 | 30 | 12 | 2500 | - | - | 4500 | 80 | 83 |
| FA30-220S15H2 | 30 | 15 | 2000 | - | - | 2000 | 120 | 84 |
| FA30-220S24H2 | 30 | 24 | 1250 | - | - | 1000 | 120 | 85 |
| FA30-220S30H2 | 30 | 30 | 1000 | - | - | 800 | 150 | 86 |
| FA30-220S48H2 | 30 | 48 | 625 | - | - | 600 | 150 | 87 |
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
