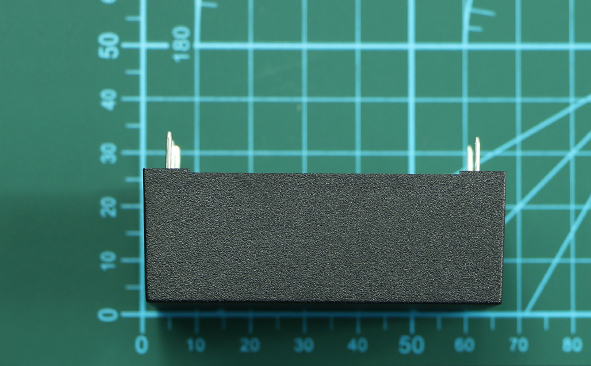

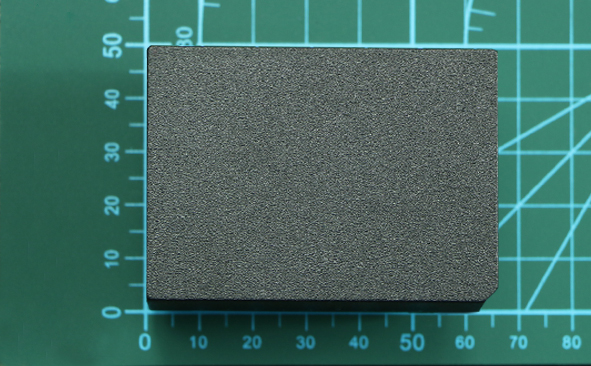

15w 220vac to 12vdc single output isolated ac to dc converter switch power adapter
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Typical Features:
- 15W AC DC Converter 220V/230V to 5V 3A
- Universal input voltage range 85~265Vac
- Switching Frequency: 65KHz Typ.
- Cooling by free air convection
- 100% burn-in test
- Low cost / High reliability
- Input and Output highly isolated 4000Vac
- PCB Mounting
- Ultra small in size
- Plastic case, meet UL94V-0
- 3 years warranty
- Safety Standard:CE,RoHS
- Protections: Over current, short circuit, over temperature
Typical Features
Wide input voltage range:85-265VAC/120-380VDC
No-load power consumption≤≤0.35W
Transfer efficiency(typ. 84%)
Switching frequency: 65KHz
Protection: Short Circuit, Over Current, Over Voltage, Over Temperature
Isolation voltage: 4000Vac
Meet IEC60950/UL60950/EN60950 Test Standard
Plastic case, conform to UL94V-0 Class
PCB mounting
Application Field
FA15-220SXXF2D4 Series----- a compact size, high efficient power converter offered by Aipu.
It features universal input voltage, DC and AC dual-use, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation, with good EMC performance. EMC and Safety standard meet international EN55032,IEC/EN61000. It widely used in power, industrial, instrument, smart home applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.
Typical Product List
| Part No. | Output Specification | Max. Capacitive Load | Ripple&Noise 20MHz (Max) | Efficiency@ Full Load 220Vac (Typical) | ||||
| Power(W) | Voltage 1 Vo1(V) | Current 1 Io1 (m A) | Voltage 2 Vo2(V) | Current 2 Io2 (m A) | u F | mVp-p | % | |
| FA15-220S05F2D4 | 15 | 5 | 3000 | - | - | 1000 | 80 | 74 |
| FA15-220S09F2D4 | 15 | 9 | 1667 | - | - | 1000 | 80 | 82 |
| FA15-220S12F2D4 | 15 | 12 | 1250 | - | - | 800 | 80 | 84 |
| *FA15-220S15F2D4 | 15 | 15 | 1000 | - | - | 700 | 80 | 84 |
| FA15-220S24F2D4 | 15 | 24 | 625 | - | - | 500 | 100 | 86 |
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
