Industrial 6W AC DC converter, 110VAC/ 220VAC/230VAC to 3.3V/5V/9V/12V/15V/24VDC power supply, with CE/RoHS
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Typical Features:
- 6W AC DC Converter Power Supply 110V/220V to 3.3V/3.6V/5V/9V/12V/15V/24V
- Universal input voltage range 85~265Vac
- Tansfer Efficiency: 83%(Typ.)
- Switching Frequency: 50~60KHz
- Cooling by free air convection
- 100% burn-in test
- Low cost / High reliability
- Input and Output highly isolated 3750Vac
- DIP, PCB Mounting
- Plastic case, UL94 V-0
- Conform to CE standard
- 3 years warranty
- Protections: Over current, short circuit, over voltage, under voltage, over temperature
Product Detail:
| Certificate | Model | Input Voltage Range | Output | Max. Capacitive Load | Ripple& Noise 20MHz | Efficiency@ Full Load, Nominal Input Voltage (Typical) | |
Voltage Vo1(V) | Current Io1(m A) | u F | mVp-p | % | |||

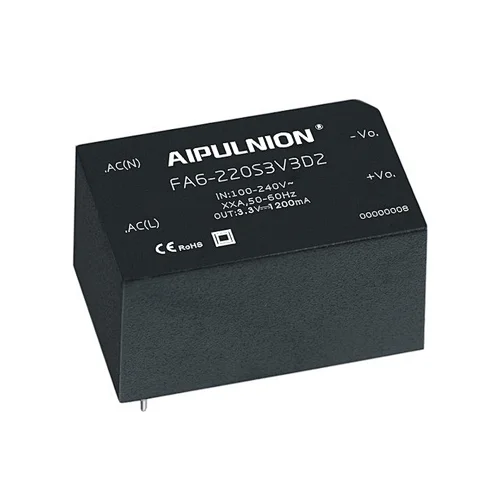

| CE | FA6-220S3V3D2 | 85V-265Vac/ 120-380Vdc | 3.3 | 1200 | 1000 | 80 | 66 |
| FA6-220S3V6D2 | 3.6 | 1200 | 1000 | 80 | 72 | ||
| FA6-220S05D2 | 5 | 1200 | 1000 | 80 | 75 | ||
| *FA6-220S09D2 | 9 | 666 | 1000 | 120 | 80 | ||
| FA6-220S12D2 | 12 | 500 | 680 | 120 | 80 | ||
| FA6-220S15D2 | 15 | 400 | 470 | 120 | 81 | ||
| *FA6-220S24D2 | 24 | 250 | 220 | 120 | 83 | ||
For more detail, please contact me.
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
