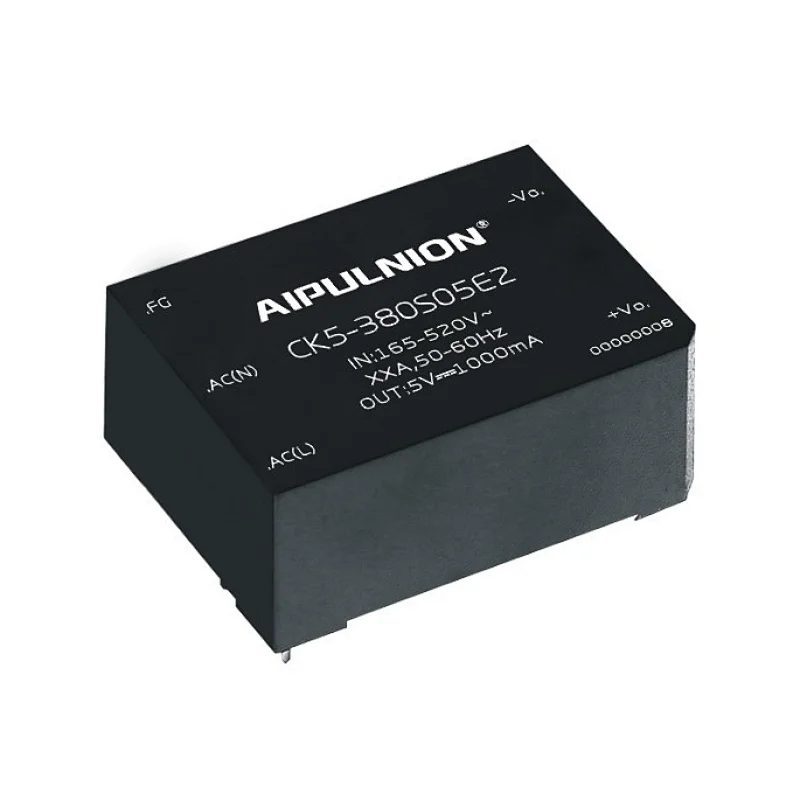

3 Phase High Input Voltage 165-460Vac Single Output Isolated 5W 380V to 5V 1A AC DC Power Supply Module
We can produce products in your brand according to your request. If you need more information, pls feel free to contact us.You can get the reply within 24 hours.
Product Typical Features
Wide Input Voltage Range:165-460VAC/230-650VDC
No Load Power Consumption≤0.60W
Transfer Efficiency(typ. 74%)
Switching Frequency 65KHz
Output Protection: Short Circuit, Over Current, Over Voltage
Isolation Voltage: 3750Vac
Conform to RoHS 2.0 Standard
Plastic Case E2, meet UL94V-0 class
PCB Mounting
Application Field

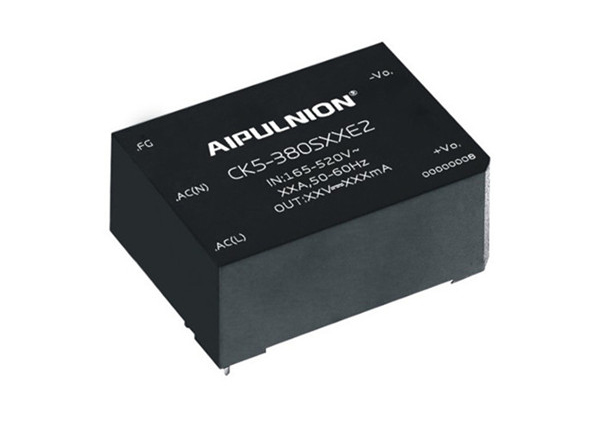

CK5-380SXXE2 Series-----a small size, high efficient power converter offered by Aipu.
It features universal input voltage range, accept either AC or DC input, low ripple, low temperature rise, low power consumption, high efficiency, high reliability, safer isolation.
The series particularly suitable for electrical, industrial, instrument and smart home application.

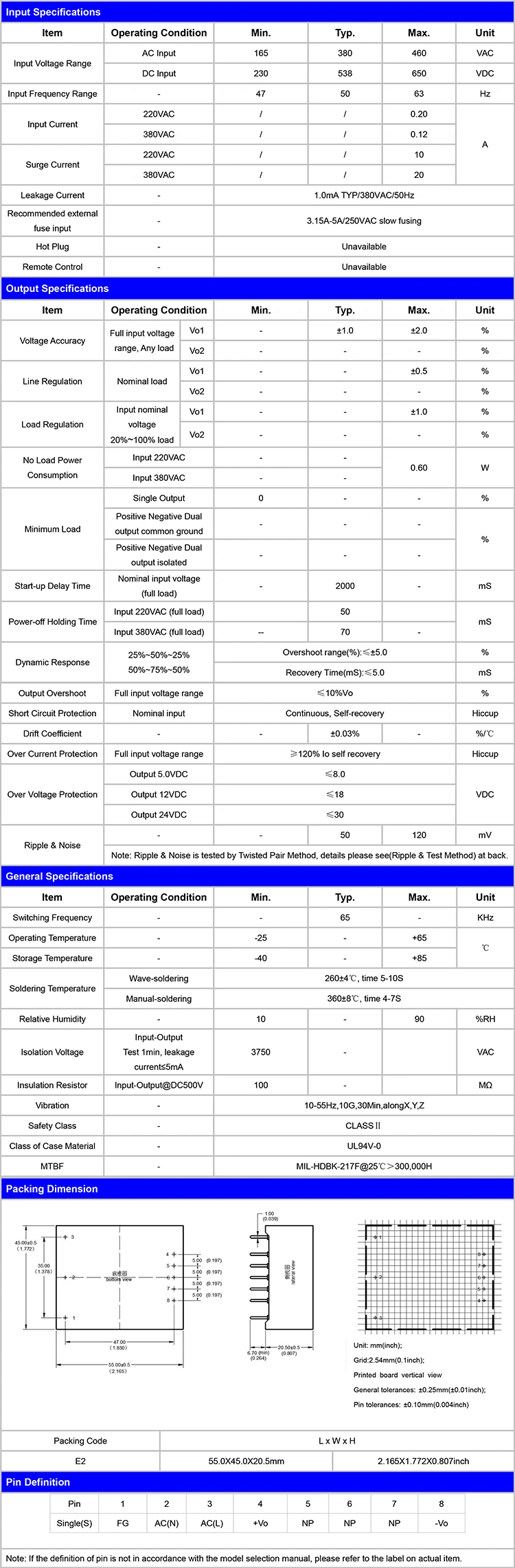

Please refer to this datasheet when module being used in a bad EMC environment.
Typical Products List
| Part No. | Output Specifications | Max. Capacitive Load | Ripple & Noise 20MHz (Max) | Efficiency@ full load, 380Vac (typ.) | ||||
| Power(W) | Voltage 1 Vo1(V) | Current 1 Io1(m A) | Voltage 2 Vo2(V) | Current 2 Io2(m A) | u F | mVp-p | % | |
| CK5-380S05E2 | 5 | 5 | 1000 | - | - | 1000 | 80 | 70 |
| CK5-380S12E2 | 5 | 12 | 417 | - | - | 680 | 120 | 72 |
| *CK5-380S24E2 | 5 | 24 | 208 | - | - | 100 | 120 | 74 |
Guangzhou Aipu Electron Technology Co., Ltd is a
national high-tech enterprise for power supply solution.
Over more than 15 years, we become one of the most
professional power module manufactures in China.
Specializing in making good quality AC/DC converter,
DC/DC converter from R&D, production and marketing,
our product line have passed CE, RoHS, as well as
multiple management system of ISO9001-2015.
Aipulnion 's quality are widely applied to fields of communication, industrial control, smart home, internet of thing, railway, power industry, charging pile ect.
Our products categories include:
1-700W DC-DC converter,1-200W AC-DC converter and 20-40W Ringing Generator converter.
